Air Cooled RS Adaptor Kit -
Includes Custom Air Cooled RS Adaptor and LockTop II
 |

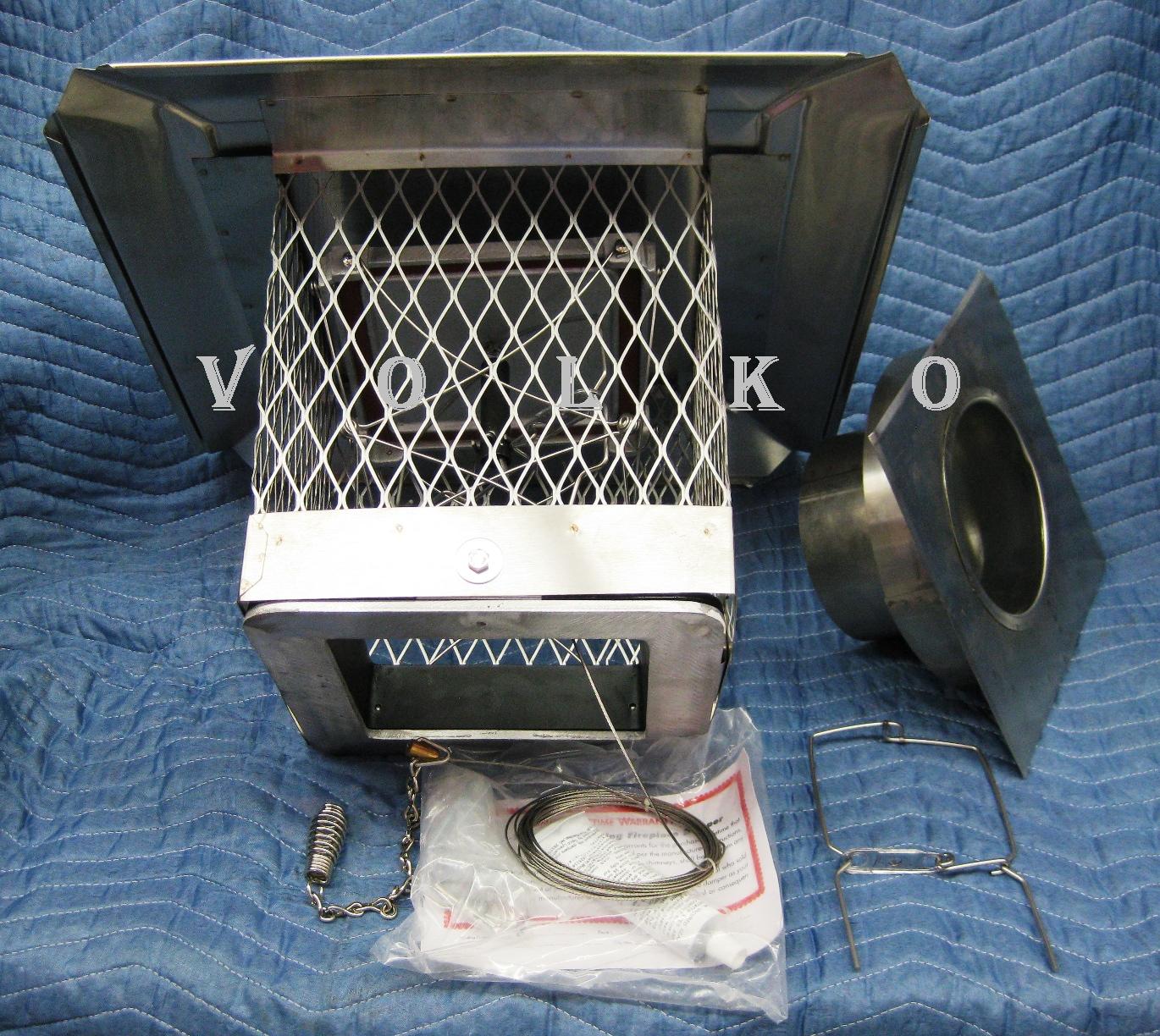

WHAT YOU GET.....
...when you buy from Volko SupplyProperly Sized Lock Top II
Chimney Damper & Cap Combo
Sweeps Ring... Included
Custom Stainless Steel RS Adaptor
for Air Cooled Pipe
Smaller Sized Fire Safety Device
*** Damper will not close properly unless smaller safety device is
installed |
|
Pipe Not Included... Section of pipe shown for visual
purposes only |
 |
 |
 |
| Easy Installation |
Adaptor slips to inner flue pipe
|
Damper attached to adaptor |
CAUTION: A custom Air Cooled
Adaptor must be used for Air Cooled Pipe.
DO NOT attempt to use a standard RS Adaptor with air cooled pipe.
 |
Air cooled double and triple
wall flue systems need to be measured by their INSIDE measurement.
Typically... the inner pipe will be a "full" inch
measurement...
IE... 8" not 7 3/4" or 10" not 10 1/4"
... the larger outer pipe will vary in size depending on the air space
between the pipes and manufacturers design..
The inner and outer pipe need to be the same height
for proper installation of an RS Adaptor.
Need extra help? Measure and
e-mail us a picture.... |
If the inner pipe is higher the outer pipe you will need to
cut the pipe to the same height as the outer.
Note: look for any "extension" of pipe that can be removed to avoid cutting.
If the inner pipe is lower than the outer... a small section of pipe may need to
be installed.
 |
A nice installation
with a custom Air Cooled Pipe Adaptor and Lock Top II damper/cap..... |
 |
 |
 |
 |
 |
Air Cooled Pipe
Pipes must be even heights for proper installation |
Installed RS Adaptor
Provides flat area to attach LockTop or Lock Top II |
Air Cooled RS Adaptor
Provides air space to allow outer pipe(s) to exhaust |
Lock Top II
Prior to installation of chimney cap
Damper attached to RS adaptor with adhesive (included) |
Lock Top II
Installed
Easily removable for cleaning/sweeping |
Think you have an air cooled pipe system...
call or e-mail for custom pricing.
ADD a Cable Shield for $20** or Lyemance
LockTop 50'
Cable for only $22**
COMBO SPECIAL pricing
valid ONLY on purchases of a Cable Shield or Cable AND Lyemance Damper
|
Lock-Top's rubber
gasket seals tightly like a storm door for your fireplace, and keeps
heating and cooling dollars where they should be...in your home.
