Chimney Dampers / Copper Pipe Flashings
Please choose one of products below...

$45.00 - 1 pc. Multi-fit 1 1/2 - 3 inch Copper Pipe Flashing. Shipping Included.
$45.00 - 1 pc. 3 inch Copper Pipe Flashing. Shipping Included.
$45.00 - 1 pc. 4 inch Copper Pipe Flashing. Shipping Included.
$45.00 - 1 pc. Multi-fit 3 - 4 inch Copper Pipe Flashing. Shipping Included.
$345.00 - 12 pc. 3 inch Copper Pipe Flashing. Shipping Included.
$370.00 - 12 pc. 4 inch Copper Pipe Flashing. Shipping Included.
$328.00 - 12 pc. Multi-fit 1 1/2 - 3 inch Copper Pipe Flashing. Shipping Included.
$365.00 - 12 pc. Multi-fit 3 - 4 inch Copper Pipe Flashing. Shipping Included.
$198.00 - 6 pc. Copper Pipe Flashings ( ANY 6 SPECIAL )... Shipping Included.

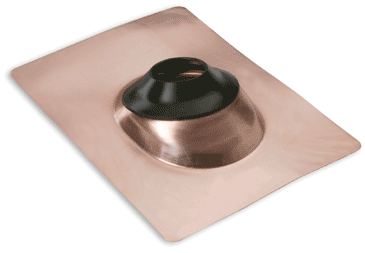

Copper Pipe Flashings

Deep drawn, 16 ounce dead soft 99.9% pure copper base

Premium Elastomeric Collar

Collar rated 180 degrees Fº continuous heat

Approved for Type B Gas Vent Installations

Fits up to 40º roof pitch

Excellent ozone resistance

Improved UV resistance

A.S.T.M. B-370 152M – 00

Made in the USA

Installation Instructions

Submittal Sheet

NOTE: Do not use petroleum base mastics, sealing compounds or paints on collar.
Not for hot-mopped or built-up roof applications

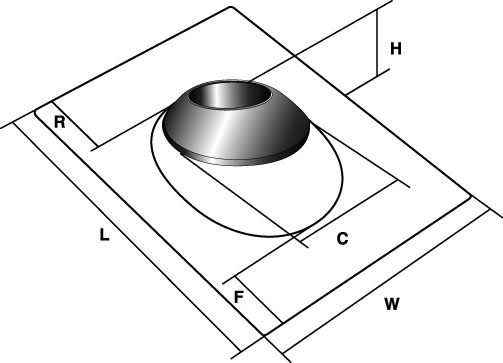

Prod. No. Pipe Size Base Size Dim. W Dim. L Dim. R Dim. F Dim. C Dim. H
CNC15 1-1/4"-1-1/2" 8-3/4"x12-5/8" 8-3/4" 12-5/8" 3-5/8" 2-1/4" 4-1/4" 2-1/8"
CNC20 2" 8-3/4"x12-5/8" 8-3/4" 12-5/8" 3-5/8" 2-1/4" 4-1/4" 2-1/8"
CNC30 3" 10-3/4"x14-1/2" 10-3/4" 14-1/2" 4-1/2" 2-1/2" 5-1/2" 2-5/8"
CNC40 4" 11-3/4"x15-1/2" 11-3/4" 15-1/2" 4-1/2" 2-1/2" 6-1/2" 2-3/8"
CN123 1.5"-2"-3" 10.75"x14.5" 10.75" 14.5" 4.25" 2.5" 5.25" 2.75"
CN340 3"-4" 11.75"x15.5" 11.75" 15.5" 4.5" 2.5" 6.5" 3"

Make sure that the collar size indicated matches the pipe inside diameter
(i.e. 1.5” flashing for 1.5” pipe, 2” flashing for 2” pipe size, etc).

Overstressing the collar may result in premature failure.
