Chimney Dampers / RS Adaptor Kit
Please choose one of products below...
|
|
|
 |

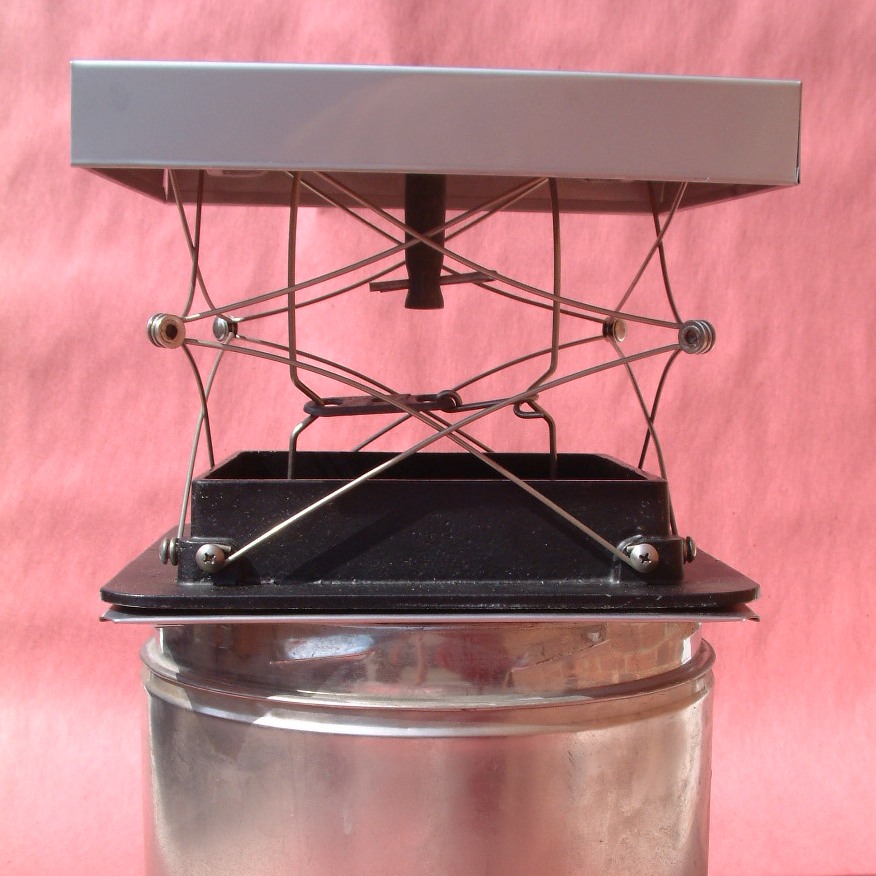

RS Chimney Adaptor Kit
KIT includes RS adaptor with fire safety
device AND Lock Top Damper
Flue pipe section is for visual
purposes only and is NOT included.For round
metal chimney flue
applications.
Fits ID measurements for Insulated chimney pipe and most chimney liner
systems.
Call for air cooled metal pipe or other round flue
pipe options. |
| Inside Flue Pipe Size |
RS Adaptor Size Needed |
Lock Top Damper Size Needed |
| 6" |
6" |
8" x 8" |
| 7" |
7" |
8" x 8" |
| 8" |
8" |
8" x 8" |
| 9" |
9" |
13" x 13" |
| 10" |
10" |
13" x 13" |
 |
 |
 |

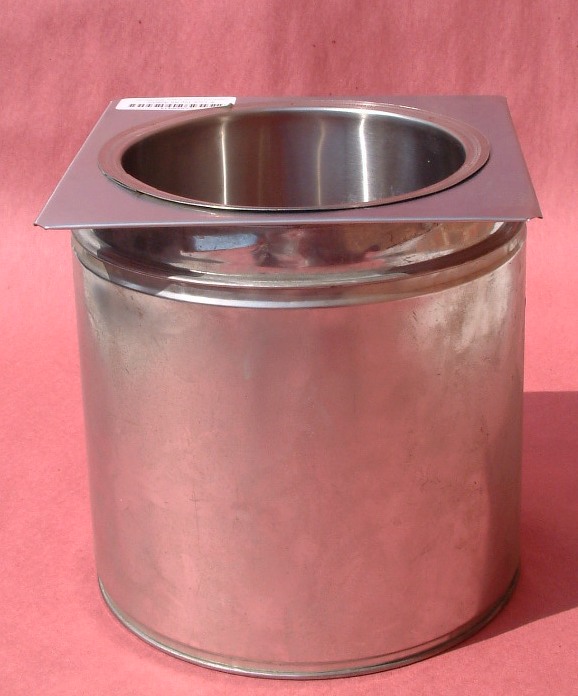

| RS Adaptor slides into flue pipe providing a
flat surface to attach damper. |

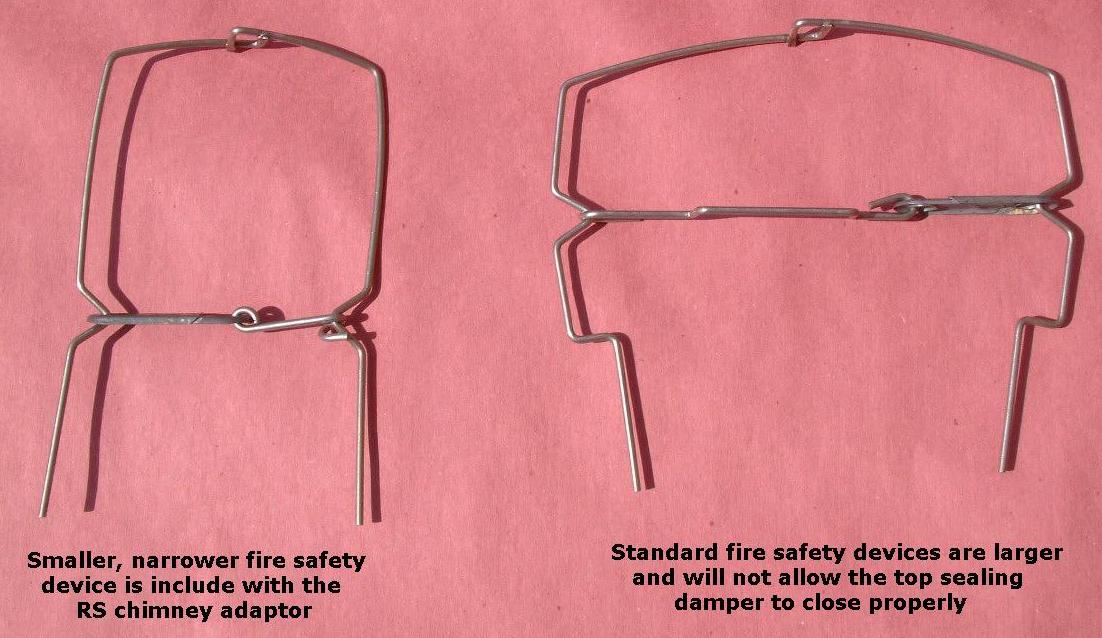

RS Adaptors include a smaller "fire safety device".
Lock Top Dampers will not close unless the smaller fire safety device is used.
|
|
Replaces
leaky throat dampers |
Chimney fire safety device |
Keeps
animals out of your chimney |
|
Energy efficient - seals
in furnace heat and air conditioning |
Made of
cast aluminum and stainless steel |
|
Sizing for an
RS Adaptor
Single wall, liners and Class A insulated flue pipe need to be measured by its INSIDE
measurement.
Typically... newer standard size insulated flue pipe
will have a 1" thick wall.
Older insulated flue pipes will vary
in their outer measurements.
Measure and give us a call if
you would like help sizing for an RS Adaptor. |
 |
CAUTION: A custom Air Cooled
Adaptor must be used for Air Cooled Pipe.
DO NOT attempt to use a standard RS Adaptor with air cooled pipe.
 |

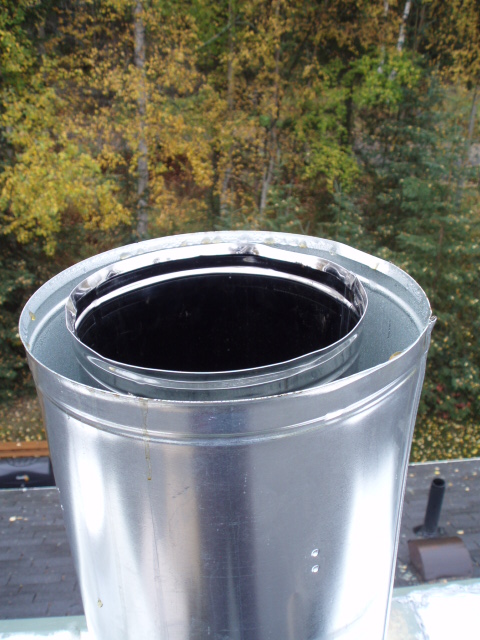

Air cooled double and triple
wall flue systems need to be measured by their INSIDE
measurement.
Typically... the inner pipe will be a "full" inch
measurement...
IE... 8" not 7 3/4" or 10" not 10 1/4"
... the larger outer pipe will vary in size depending on the air space
between the pipes and manufacturers design..
The inner and outer pipe need to be the same height
for proper installation of an RS Adaptor.
Need extra help? Measure and
e-mail us a picture.... |
|
 |
 |
 |
If the inner pipe is higher
the outer pipe you will need to cut the pipe to the same height as the
outer.
Note: look for any "extension" of pipe that can be removed to avoid
cutting.
If the inner pipe is lower than the outer... a small section of pipe may
need to be installed. |
 |

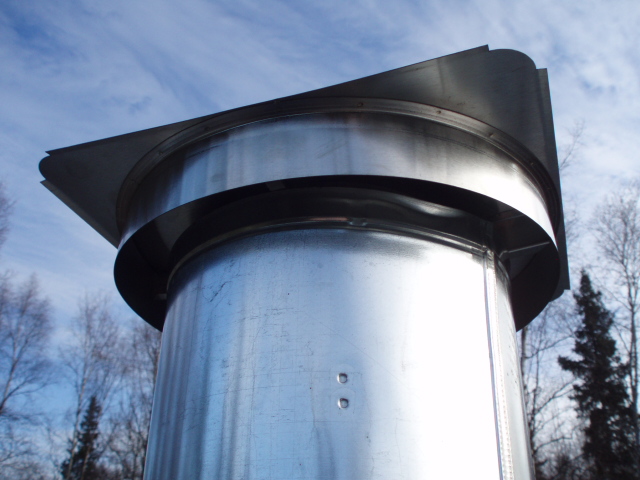

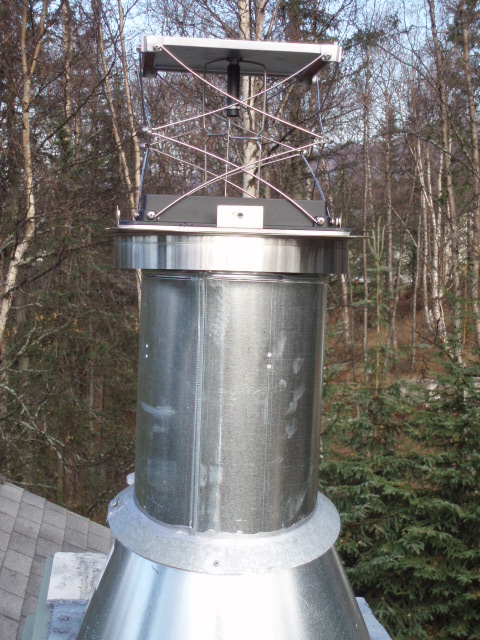

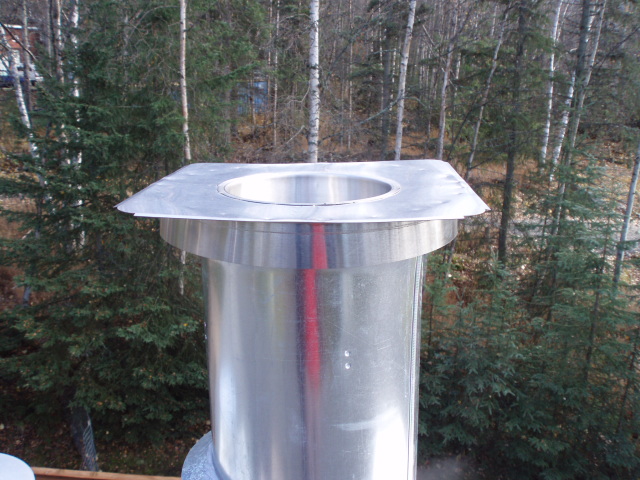

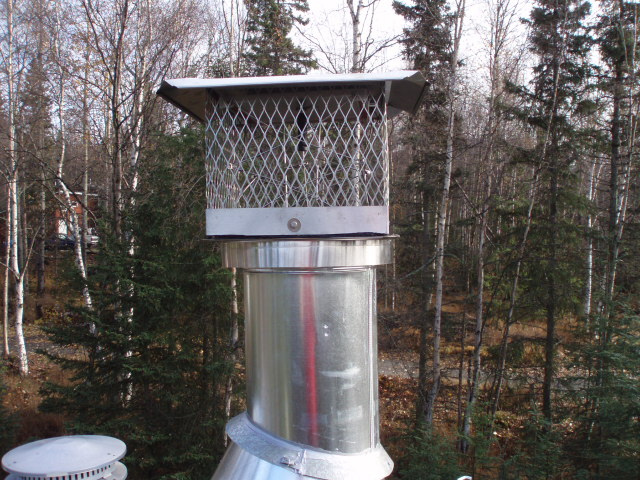

A nice installation with a custom Air
Cooled Pipe Adaptor
and Lock Top II damper/cap..... |
|
 |
 |
 |
 |
 |
Think you have an air cooled pipe system... call or e-mail for
custom pricing.
 Lock-Top's
rubber gasket seals tightly like a storm door for your fireplace, and
keeps heating and cooling dollars where they should be...in your home.
Lock-Top
mounts on top of your chimney to keep out animals and rain.
Lock-Top
easily operates from inside your firebox and seals tight every time you
close it—eliminating any draft. |
|
Traditional
dampers are located in the "throat" of a fireplace. They are made of
cast-iron and are housed in a low-tech frame work.
These
cast-iron dampers do not seal well—they have a leaky, rough,
metal-to-metal seal.
Recent
lab studies have shown that even a new throat damper can leak up to $200
of heating and cooling a year. Imagine how much energy an old, rusted
out damper leaks! |
That's right, the Lock Top damper seals with a rubber gasket, not metal to metal like
your current damper. A Lock-Top Damper seals tight, so virtually no air, and
thus no heat or air conditioning gets lost up your chimney.
The Lock Top also eliminates downdrafts, seals out rain which can deteriorate
the inside of your chimney, and prevents entry by pests like squirrels,
raccoons, and nesting birds.The Lyemance Lock Top Chimney Damper mounts on top of your chimney |
|
 |
|
 |
|
A cable drops down your flue and attaches to a handle which mounts where you can
reach it for convenient opening and closing.
Superior stainless steel and cast-aluminum construction equal a lifetime
warranty
The Lock-Top Damper is made of cast-aluminum and stainless steel, precision
fitted with our special silicone rubber gasket. These high-quality materials add
up to a factory lifetime warranty for you.
|
|
|
|
|
